Planning and Scope Control in LNG Turnarounds

In LNG facilities, turnarounds are not routine maintenance events. They are high-stakes operational resets.

When a liquefaction train shuts down, production stops entirely. Revenue pauses. Contractor density increases. Risk multiplies. Every additional day of outage carries multi-million-dollar exposure.

Across LNG conferences and shutdown summits, one message consistently dominates:

Culture, materials readiness, governance gates, contractor competence, and risk management are critical — but they function as supporting systems. Without disciplined scope definition and freeze maturity, those systems cannot stabilize execution.

Independent Project Analysis (IPA, 2018) repeatedly shows that projects with strong Front-End Loading (FEL) dramatically outperform poorly defined projects in cost and schedule performance.

In LNG rotating equipment TARs, the difference between success and overrun is rarely mechanical capability.

It is scope control.

An LNG turnaround concentrates:

Unlike smaller facilities, LNG trains cannot partially operate during major TARs. Scope growth directly extends revenue loss.

Merrow (2011) demonstrated that late scope changes are among the strongest predictors of project underperformance. In LNG environments, this is amplified because:

Scope uncertainty entering execution is financially dangerous.

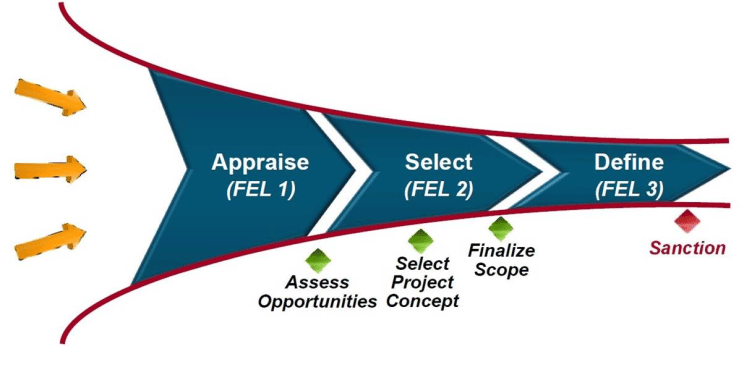

Figure 1. Front-End Loading concept showing influence over cost, highest during early planning phases, and decreasing during execution. Concept aligned with IPA (2018) and PMI (2021).

Front-End Loading in LNG TARs means:

IPA (2018) research shows that higher FEL maturity strongly correlates with lower cost growth and schedule deviation.

For rotating equipment, FEL includes:

When FEL is strong, the scope is risk-justified and bounded. When FEL is weak, discovery work expands unpredictably.

Critically, this scope discipline directly influences plant KPIs:

The line of sight is clear: disciplined scope → stable TAR → preserved availability.

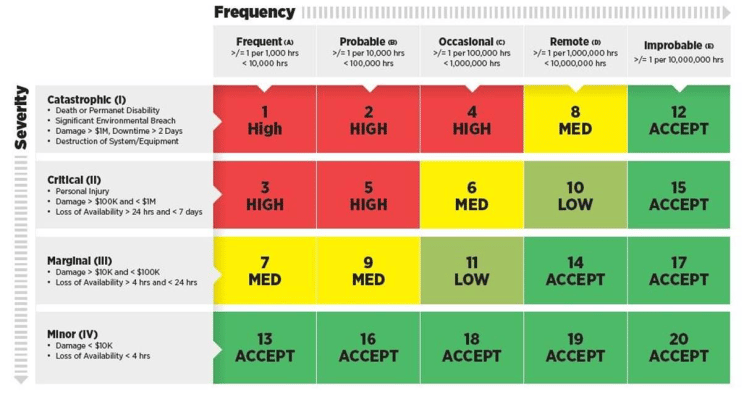

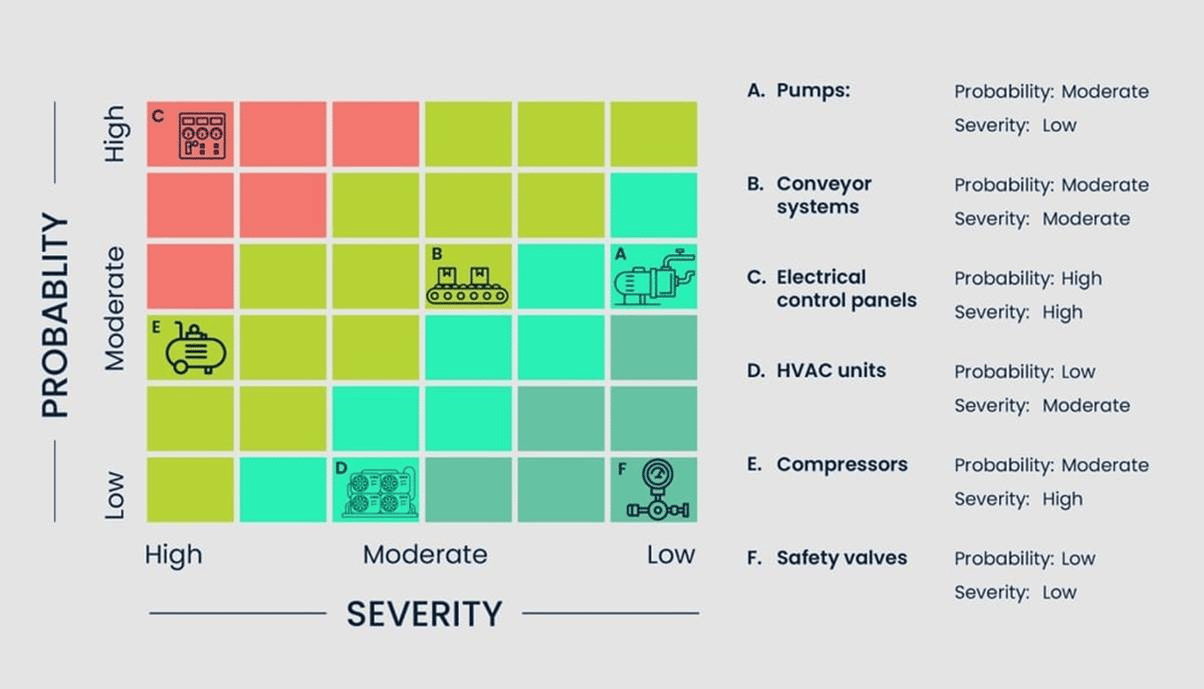

Figure 2. Example probability–consequence risk matrix used in Risk-Based Inspection and TAR scoping. Concept aligned with API RP 580 (2016) and ISO 31000 (2018).

In LNG TARs, not all rotating equipment work belongs in the shutdown.

Risk-based scoping evaluates:

This approach assumes credible condition monitoring data — validated vibration analysis, reliable oil diagnostics, and correctly interpreted trip history. Poor data quality or flawed analysis undermines the entire risk-based methodology.

API RP 580 (2016) emphasizes prioritization based on probability and consequence, not convenience.

The disciplined question becomes:

Does this work require shutdown isolation, or can risk be managed until the next window?

Without a structured risk methodology, scope becomes a backlog-clearing exercise.

Scope creep in LNG often hides behind reasonable engineering logic.

Common patterns:

Individually rational. Collectively destabilizing.

For example:

Adding a non-critical coupling upgrade during a major compressor overhaul may introduce:

If that addition extends rotor reassembly by even 8 hours, and that work lies on the critical path, the downstream impact can easily push restart by a full day.

In a large LNG train producing 3–5 million tonnes per annum, a single day of delay can represent US$1–3 million in deferred revenue, depending on contract structure and market conditions.

This is how “small” scope additions escalate financially.

Merrow (2011) links late changes directly to schedule and cost underperformance.

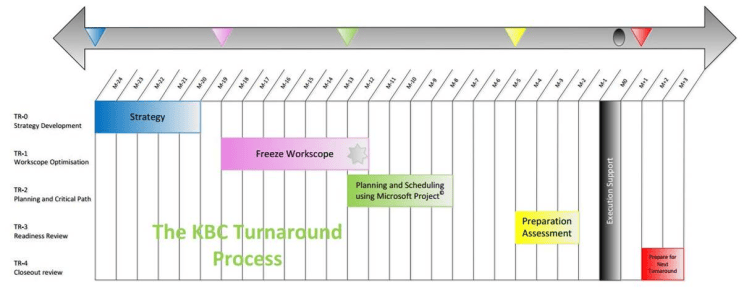

Figure 3. Stage-gate and Management of Change frameworks supporting TAR scope discipline. Aligned with CCPS (2014) and PMI (2021).

High-performing LNG sites implement:

After the final freeze, additions must be:

CCPS (2014) emphasizes structured change control to reduce operational risk during high-density maintenance.

Freeze discipline protects critical path stability.

Work pack quality determines execution predictability.

High-quality LNG rotating equipment packs include:

Incomplete packs create field improvisation.

Improvisation erodes contingency.

Contingency erosion increases schedule pressure.

Schedule pressure increases safety exposure.

Planning depth is risk control.

Rotating equipment TARs depend on:

Lead times can exceed 9–12 months.

IPA (2018) links supply chain immaturity to project cost growth.

If a thrust bearing ordered late arrives two weeks after planned reassembly, the resulting delay dwarfs the early engineering effort cost.

Material strategy is the scope strategy.

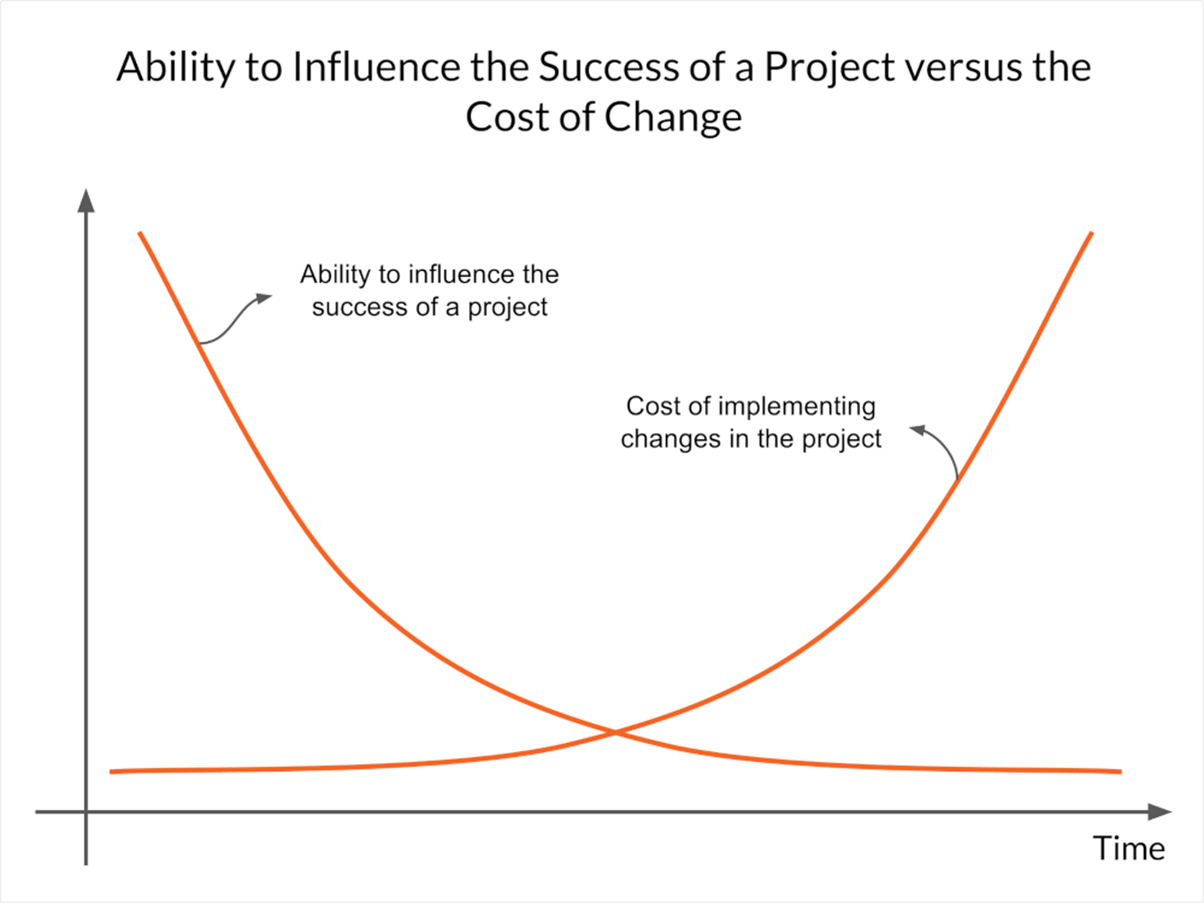

Figure 4. Conceptual cost-of-change curve illustrating exponential cost growth of late scope decisions. Aligned with Merrow (2011) and IPA (2018).

The widely cited cost-of-change curve is an illustrative order-of-magnitude concept, not a measured ratio, but it reflects consistent industry experience:

In LNG, the financial multiplier is real.

The shutdown window is the most expensive time to solve unresolved technical questions.

High-performing LNG organizations demonstrate:

Reactive organizations demonstrate:

Turnaround performance reflects organizational discipline more than mechanical complexity.

In LNG rotating equipment TARs, planning maturity and scope discipline are the primary control mechanisms.

Everything else — materials readiness, culture, governance, contractor competence — reinforces that control system.

Successful TARs require:

Industry research is consistent:

Poor scope definition leads to overruns. Late changes multiply the cost. Weak governance destabilizes execution.

In LNG turnarounds, planning is not preparation.

Planning is control.

And control begins with scope discipline 18 months before the first flange is broken.

API (2016) API RP 580: Risk-Based Inspection. American Petroleum Institute. CCPS (2014) Guidelines for Managing Process Safety Risks During Organizational Change. Independent Project Analysis (2018) Front-End Loading and Project Performance Research Findings. ISO (2018) ISO 31000: Risk Management – Guidelines. Merrow, E. (2011) Industrial Megaprojects. Wiley. PMI (2021) PMBOK Guide, 7th ed.
